Magnetic Measuring Devices/Instruments
- Measures magnetic field strength and indicates magnetic polarity
- Cost-effective measuring instruments
- Easy to use, portable, and convenient to handle
- Ideal for quick quality checks and comparative measurements
- Wireless data transmission via Wi-Fi and computer communication via USB for further data processing
- Identification of the north and south poles of permanent magnets and electromagnets
- 100% guaranteed accuracy
- Minimum detectable magnetic field: 3 mT (30 G)
- Powered by a 1.5 V AAA battery
- Suitable for NdFeB, SmCo, AlNiCo, hard ferrite, and refrigerator magnets
- Measurement of magnetic flux and testing of the magnetic properties of magnetic materials
- High-sensitivity, low-drift electronic integrator
- Peak-hold function for measuring the maximum strength of pulsed magnetic fields
- Easy to use and convenient to handle
- Commonly used tool for testing the magnetic fields of magnetic materials
- The magnetically sensitive film is sealed inside a transparent card
- Visualizes the distribution of magnetic fields and magnetic poles
- Identifies the number of poles in permanent magnets
Digital Gaussmeters/Teslameters
| Model | Product Image | Measurement Range | Accuracy | Resolution | Data Communication & Power Supply | Magnetic Field | User Manual |
|---|---|---|---|---|---|---|---|
| CYGM99A |  | 0-50mT 0-200mT 0-500mT 0-2000mT | DC: ±1.0% AC: ±2.0% | 0.001mT 0.01mT 0.1mT | Data communication via USB Power supply via USB, 3x1.5VDC (AA battery) | DC/AC magnetic field | CYGM99A (pdf) (Download Auxiliary Software) |
| CYGM99B |  | 0-50mT 0-200mT 0-300mT 0-500mT 0-2000mT 0-3000mT | DC: ±1.0% AC: ±2.0% | 0.001mT 0.01mT 0.1mT | Data communication via USB Power supply via USB, 3.7VDC (LiPo battery) | DC/AC magnetic field | CYGM99B (pdf) (Download Auxiliary Software) |
| CYGM99C |  | 0-50mT 0-200mT 0-300mT 0-500mT 0-2000mT 0-3000mT | DC: ±1.0% AC: ±2.0% | 0.001mT 0.01mT 0.1mT | Wireless data-communication via WIFI and Data communication via USB Power supply via USB, 3.7VDC (LiPo battery) | DC/AC magnetic field | CYGM99C (pdf) (Download Auxiliary Software) |

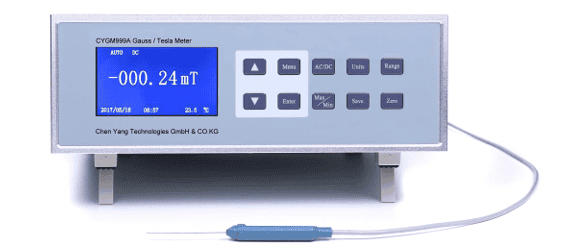

| CYGM999A |  | 0-300mT 0-3000mT | DC: ±0.3% AC: ±2.0% | 0.01mT 0.1mT | Data communication via RS-232 and USB Power supply: 220V 50-60Hz | DC/AC magnetic field | |

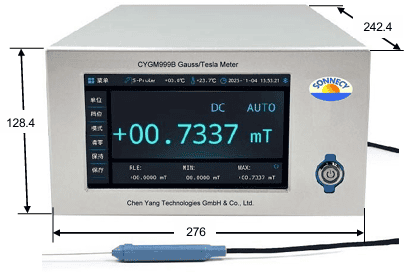

| CYGM999A |  | 0-30mT 0-300mT 0-3T 0-10T | DC: ±0.2% (0-2.5T) ±0.5% (2.5T-5T) ±1.0% (5T-10F) AC: ±1.0% | 0.0001mT 0.001mT 0.01mT 0.1mT | Data communication via RS-232, Type-C, RS-485, Ethernet and CAN Power supply: 220V 50-60Hz | DC/AC magnetic field |
Hall Probes with Analog Output Signal
| Model | Product Image | Measurement Range | Accuracy | Output Signal | Magnetic field | User Manual |
|---|---|---|---|---|---|---|
| CYTP98 |  | 0-50mT to 0-2000mT | ±1.0% | 2.5V DC ± 2.0V AC/DC | DC/AC magnetic field | CYTP98 (pdf) |
| CYAP98 |  | 0-50mT to 0-2000mT | ±1.0% | 2.5V DC ± 2.0V AC/DC | DC/AC magnetic field | CYAP98 (pdf) |
Magnetic Pole Detectors
| Model | Product Image | Measurement Range | LED Display | Applications | User Manual |
|---|---|---|---|---|---|
| CY-PD288 |  | >9mT | Red: N-Pole, Green: S-Pole, constant lighting | Electro and permanent magnets | CY-PD288 (pdf) |
| CY-PD198 |  | >9mT | Red: N-Pole, Green: S-Pole, constant lighting | Electro and permanent magnets | CY-PD198 (pdf) |
