Rückführungslose Sensoren (Rechteckfenster)
| Modell | Datenblätter | Versorgungsspannung | Eingangsnennstrom | Ausgangssignal | Genauigkeit | Linearität | Betriebstemperatur | Fenstergröße |
|---|---|---|---|---|---|---|---|---|

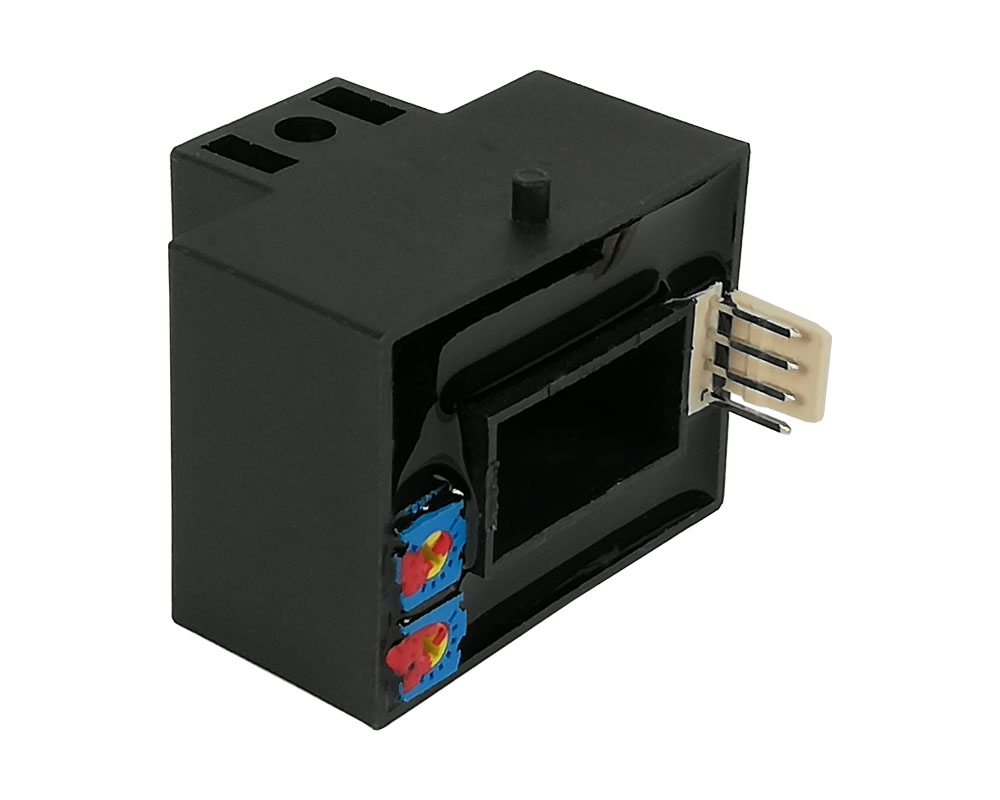

 | CYHCS-BTV | +12V DC +15V DC +24V DC | 0-50A bis 0-600A AC/DC | 0-4V DC 0-5V DC 0-10V DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 20.5 x 10.5 mm |
 | CYHCS-BTC | +12V DC +15V DC +24V DC | 0-50A bis 0-600A AC/DC | 4-20mA DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 20.5 x 10.5 mm |

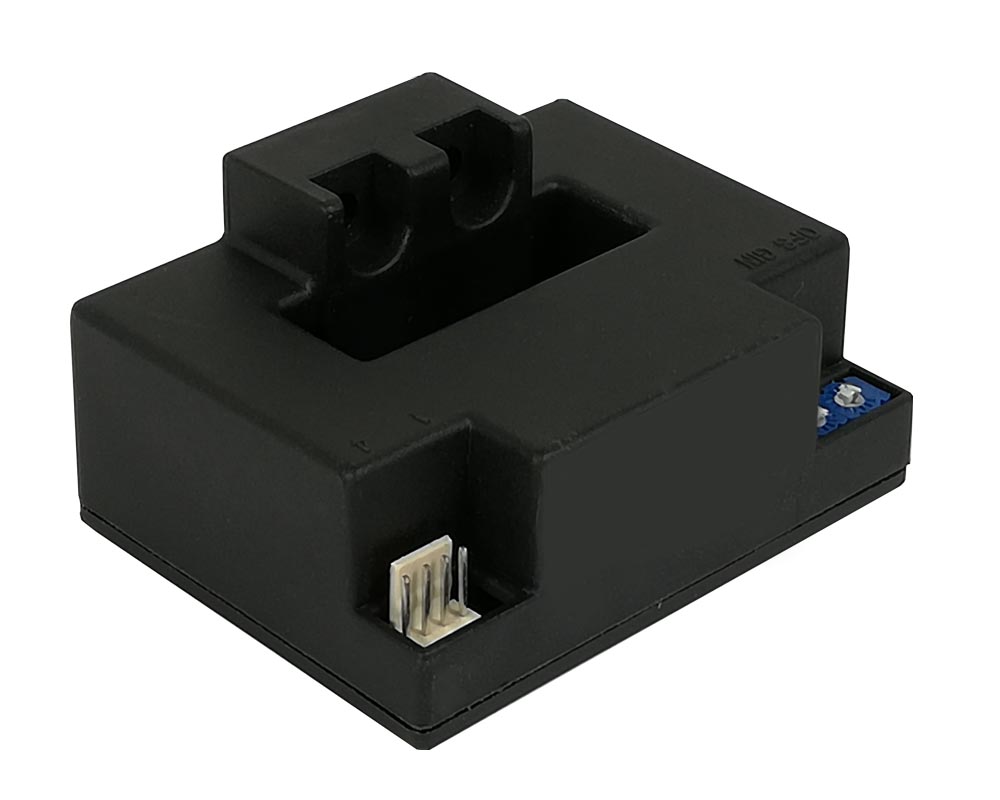

 | CYHCS-FV | +12V DC +15V DC +24V DC | 0-200A bis 0-2000A AC/DC | 0-4V DC 0-5V DC 0-10V DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 41 x 14 mm |
 | CYHCS-FC | +12V DC +15V DC +24V DC | 0-200A bis 0-2000A AC/DC | 4-20mA DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 41 x 14 mm |
 | CYHCS-FAV | +12V DC +15V DC +24V DC | 0-300A bis 0-2000A AC/DC | 0-4V DC 0-5V DC 0-10V DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 51 x 13 mm |

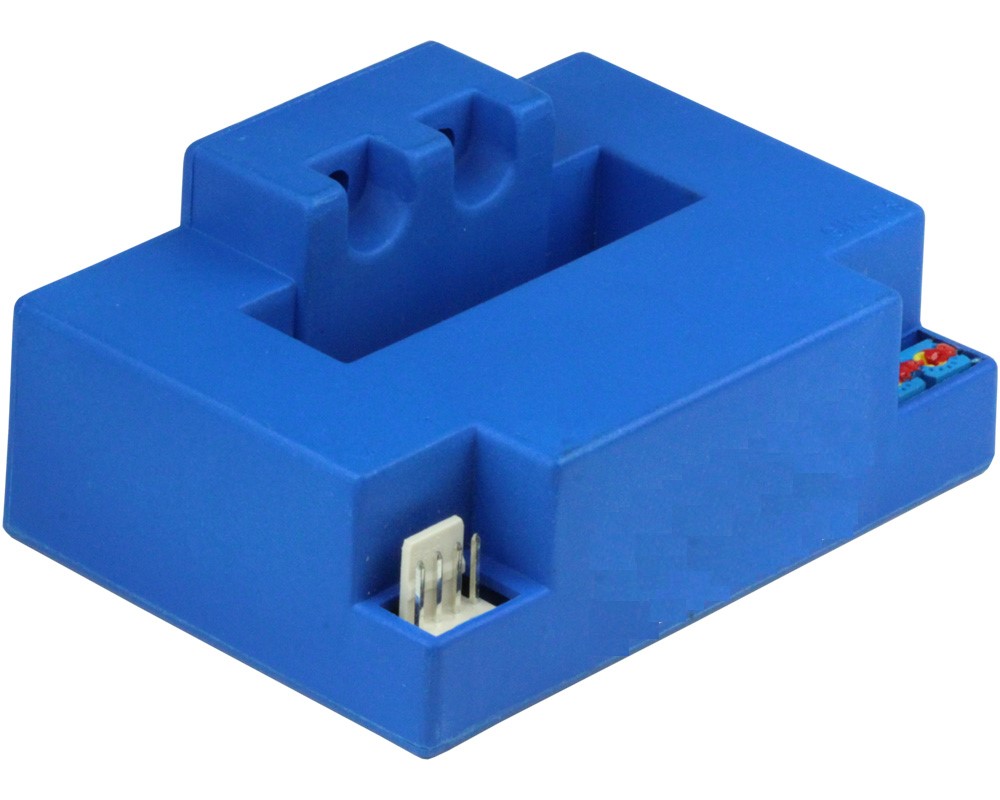

 | CYHCS-FAC | +12V DC +15V DC +24V DC | 0-300A bis 0-2000A AC/DC | 4-20mA DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 51 x 13 mm |

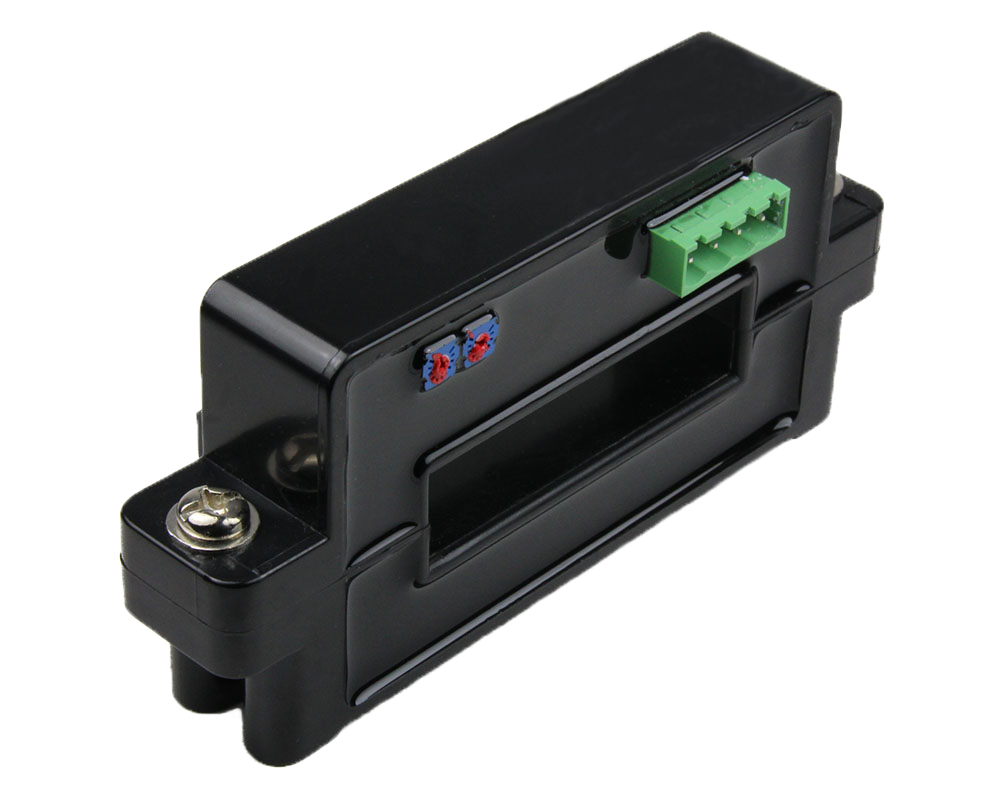

 | CYHCS-KV (Aufklappbar) | +12V DC +15V DC +24V DC | 0-300A bis 0-2000A AC/DC | 0-4V DC 0-5V DC 0-10V DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 64 x 16 mm |

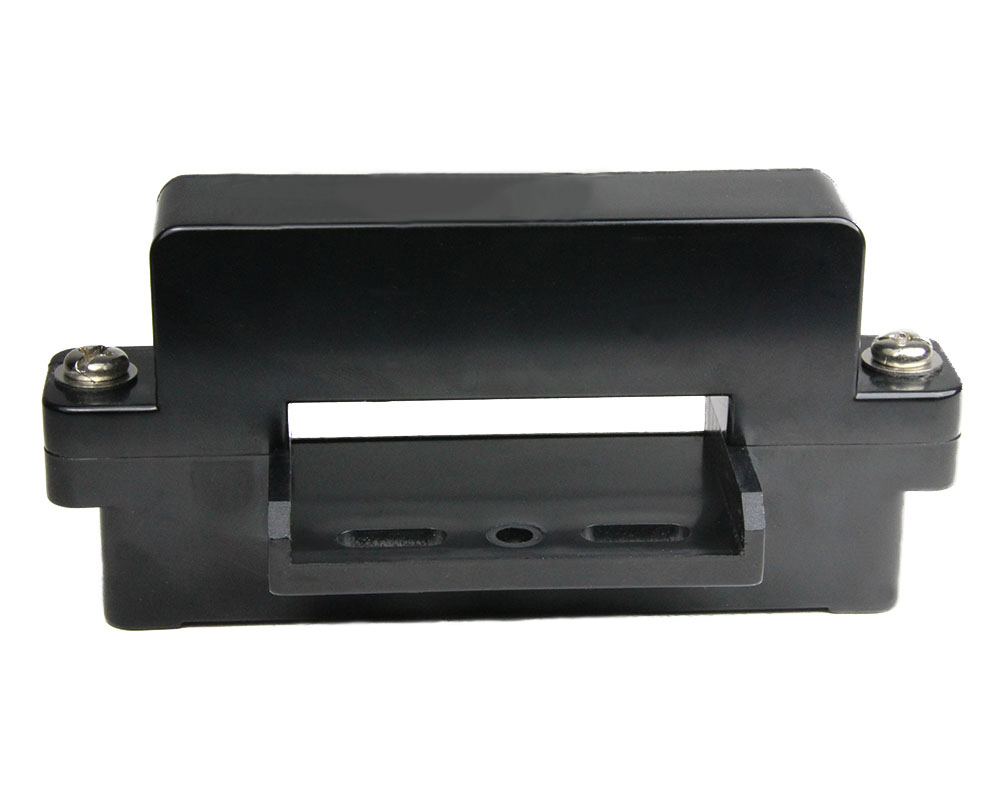

 | CYHCS-KC (Aufklappbar) | +12V DC +15V DC +24V DC | 0-300A bis 0-2000A AC/DC | 4-20mA DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 64 x 16 mm |
 | CYHCS-KF2V (Aufklappbar) | +12V DC +15V DC +24V DC | 0-300A bis 0-3000A AC/DC | 0-4V DC 0-5V DC 0-10V DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 85 x 27 mm |

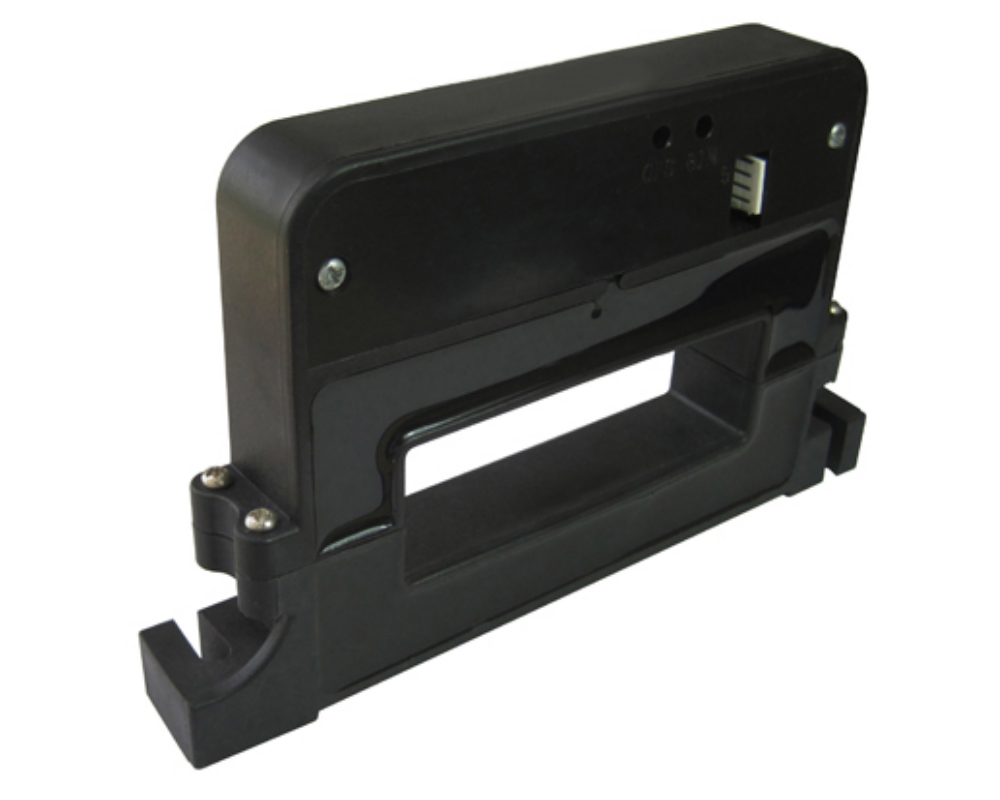

 | CYHCS-KF2C (Aufklappbar) | +12V DC +15V DC +24V DC | 0-300A bis 0-3000A AC/DC | 4-20mA DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 85 x 27 mm |
 | CYHCS-K104V (Aufklappbar) | +12V DC +15V DC +24V DC | 0-500A bis 0-5000A AC/DC | 0-4V DC 0-5V DC 0-10V DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 104 x 36 mm |

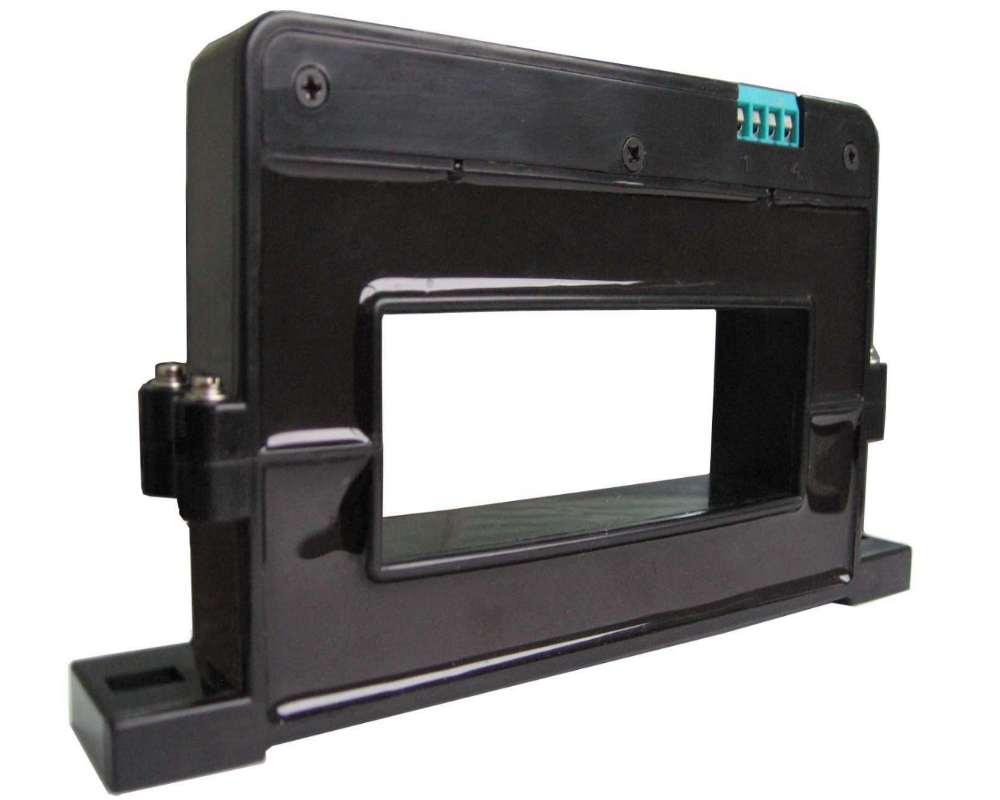

 | CYHCS-K104C (Aufklappbar) | +12V DC +15V DC +24V DC | 0-500A bis 0-5000A AC/DC | 4-20mA DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 104 x 36 mm |

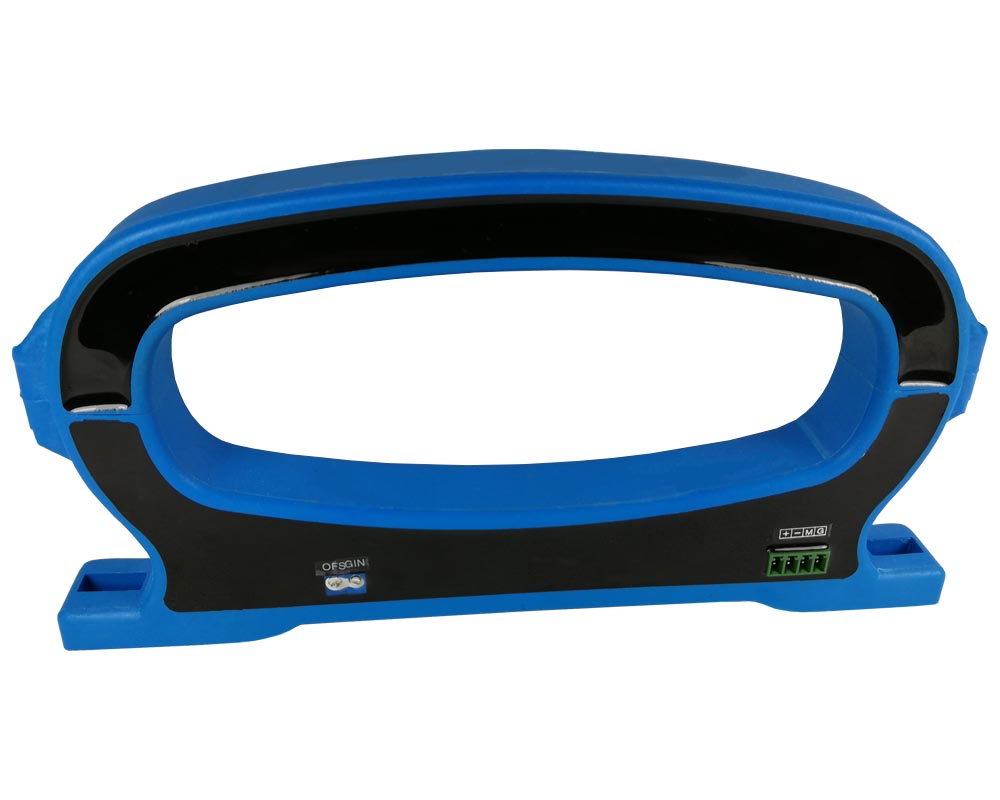

 | CYHCS-C5 (Aufklappbar) | +12V DC +15V DC +24V DC ±12V DC ±15V DC | 0-300A bis 0-6000A AC/DC | ±5V DC 0-4V DC 0-5V DC 0-10V DC 0-20mA DC 4-20mA DC ±20mA DC | ±1.0% | ±0.5% | -10°C ~ +80°C | 150 x 40 mm (115 x 50 mm) |
 | CYHCS-HBV | +12V DC +15V DC +24V DC | 0-2000A bis 0-10000A AC/DC | 0-4V DC 0-5V DC 0-10V DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 140 x 50 mm |

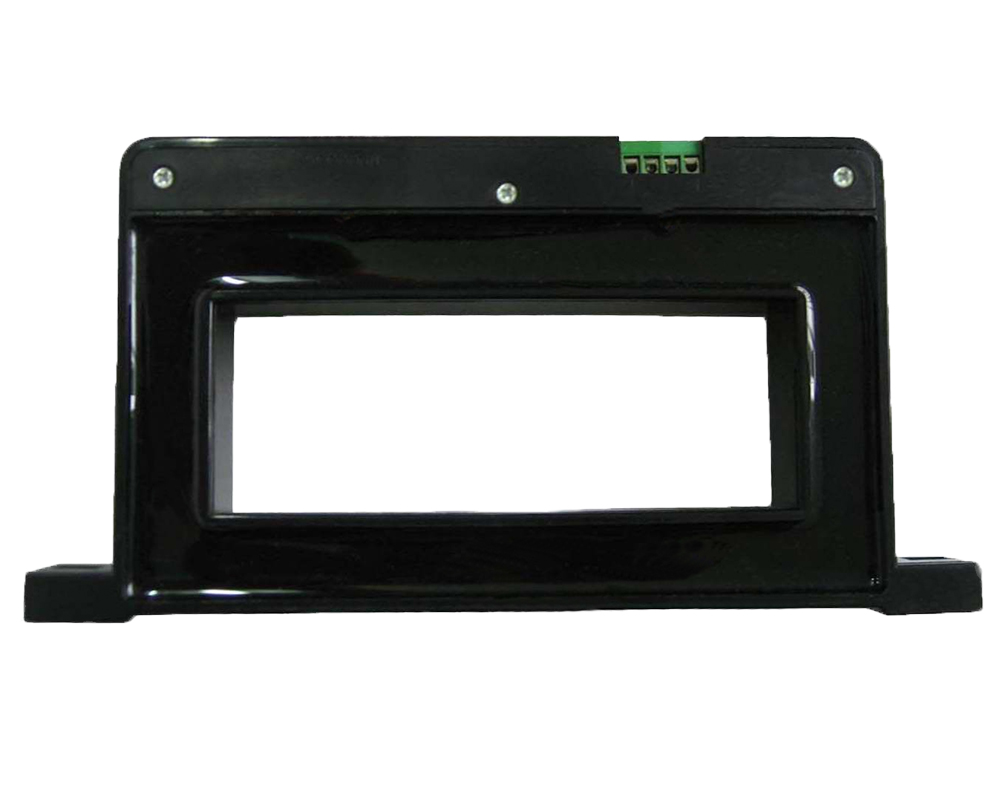

 | CYHCS-HBC | +12V DC +15V DC +24V DC | 0-2000A bis 0-10000A AC/DC | 4-20mA DC | ±1.0% | ±0.5% | -25°C ~ +85°C | 140 x 50 mm |
